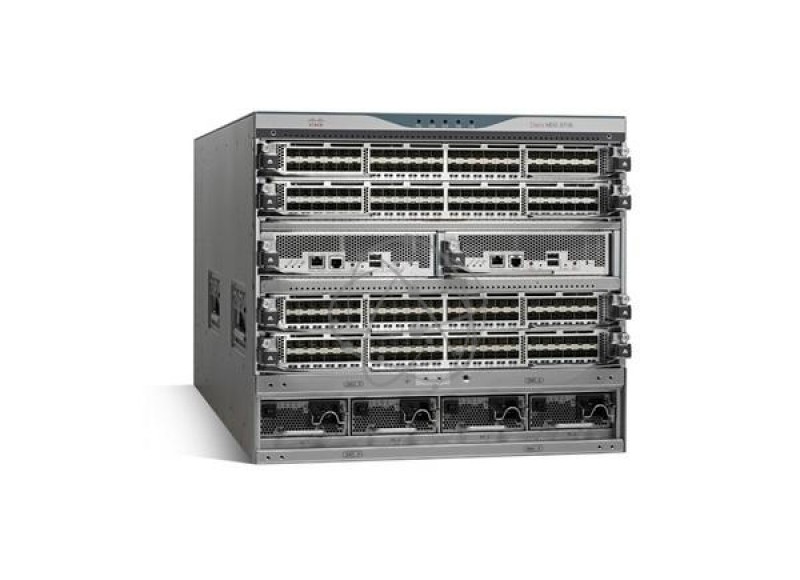

Коммутатор Cisco DS-C9706-1EK9

Included Accessories

Accessory kit

Compliant Standards

CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-6-1, ACA TS001, AS/NZS 3260, AS/NZ 3548 Class A, FIPS 140-2 Level 2, EMC, ICES-003 Class A, FCC CFR47 Part 15, FCC CFR21 Part 1040, EN 60825, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A

Width

17.3 in

Depth

32 in

Height

15.6 in

Weight

145.06 lbs

Min Operating Temperature

32 °F

Max Operating Temperature

104 °F

Humidity Range Operating

10 - 90% (non-condensing)

Min Storage Temperature

-40 °F

Max Storage Temperature

158 °F

Humidity Range Storage

10 - 95% (non-condensing)

Device Type

Switch - managed

Enclosure Type

Rack-mountable 9U

Subtype

Fibre Channel

Fibre Channel

FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS

Remote Management Protocol

RMON, SNMP 3, SSH-2, CLI

Features

Syslog support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Registered State Change Notification (RSCN) support

Interfaces

2 x management (RS-232) - RJ-45 ¦ 2 x management (Gigabit LAN) - RJ-45 ¦ 4 x USB 2.0 - Type A

Expansion Slots

2 (total) / 0 (free) x supervisor slot ¦ 6 (total) / 0 (free) x crossbar switching fabric slot

Power Device

Internal power supply - hot-plug

Installed Qty

4 (installed) / 4 (max)

Power Redundancy

Yes

Power Redundancy Scheme

N+N

Power Provided

3000 Watt
