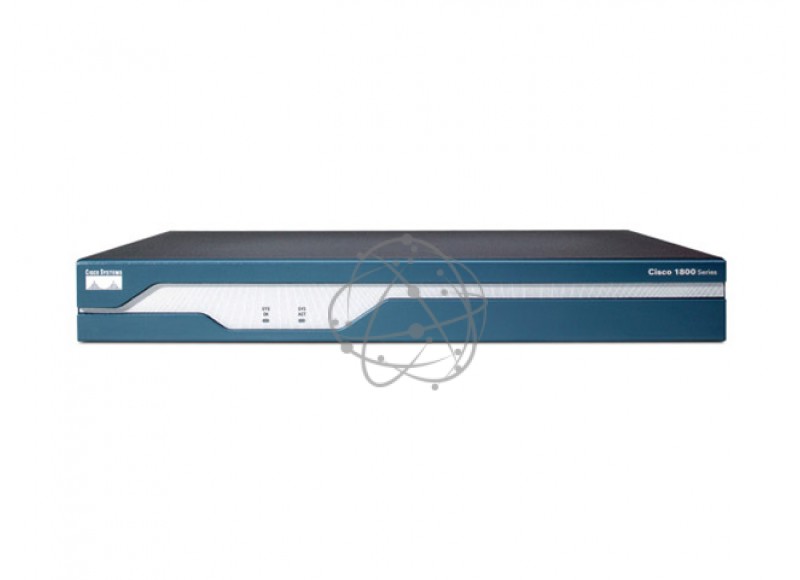

Маршрутизатор Cisco 1801

Manufacturer:

Cisco

Product ID:

CISCO1801

Product Description:

ADSL/POTS router w/IOS IP Broadband

Product Type:

Router

Interfaces/Ports

Total Number of Ports:

11

Management Port:

Yes

Number of Network (RJ-45) Ports:

8

Number of Broadband (RJ-45) Ports:

1

Number of RJ-11 Ports:

1

Media & Performance

Carrier Supported:

ISDN/DSL

Broadband Transmission Technology:

ADSL

I/O Expansions

Number of Total Expansion Slots:

2

Network & Communication

Network Technology:

10/100Base-TX

ISDN BRI (S/T)

Ethernet Technology:

Fast Ethernet

Management & Protocols

Security Features:

• Site-to-Site VPN
• SSIDs: 8
• Cisco IOS Firewall including URL Filtering
• Intrusion Prevention System (IPS)
• Dynamic Multipoint VPN
• Stateful Inspection Firewall
• IPSec Tunnels Supported: 50
• Preshared Key (PSK) Authentication
• MAC authentication/filter encryption
• Configurable RADIUS accounting for wireless clients
• Static and dynamic wired equivalent privacy (WEP) keys of 40 bits and 128 bits
• IEEE 802.1X per-user, per-session mutual authentication
• Supports EAP types including Cisco LEAP, PEAP and EAP-Transport Layer Security (EAP-TLS)
• RADIUS

WPA Support:

• Per-packet key hashing
• Message integrity check (MIC)
• Initialization vector (IV) changes
• Broadcast key rotation

Encryption Support in Hardware:

• DES
• 3DES
• AES 128-bit
• AES 192-bit
• AES 256-bit

Memory

Standard Memory:

128 MB

Maximum Memory:

384 MB

Memory Technology:

DRAM

Flash Memory:

32 MB

Memory Card Supported:

CompactFlash (CF) Card

Power Description

Input Voltage:

110 V AC

220 V AC

Physical Characteristics

Compatible Rack Unit:

1U

Form Factor:

Rack-mountable

Wall Mountable

Desktop

Height:

1.7"

Width:

12.5"

Depth:

9.5"

Weight (Approximate):

6.10 lb

Miscellaneous

Package Contents:

• 1 x 1801 Integrated Services Router
• 1 x Blue RJ-45-to-DB-9 console cable
• 1 x DB-9-to-DB-25 adapter
• 1 x Black power supply cord
• 1 x CD containing Cisco Router and Security Device Manager (SDM)
• Product documentation
• 32MB Cisco 1800 Compact Flash (MEM1800-32CF)
• Cisco 1800 Series IOS ADVANCE IP SERVICES
• Device manager for routers (ROUTER-SDM)

Additional Information:

• Users Support: 50 users
• High-Performance Processor
• Hardware Encryption Acceleration: On motherboard
• Expandable Memory Architecture
• External Power Supply: 80W external power supply
• Operating Altitude: 10,000 ft (3000m) at 77°F (25°C)
• Antivirus support
• 802.1Q VLAN support
• Integrated IEEE 802.11 a/b/g
• Multiple Antenna Options
• Chassis: Metal
• Chassis Ventilation
• Rack-Mountable: Optional 19 inch rack-mount kit required
• Range: Indoor 1 Mbps at 320 feet
• Internal Power-over-Ethernet (PoE) module
• Internal real-time clock with battery backup
• Kensington lock for physical security
• Dial backup support
• Dying gasp
• Failover protection and load balancing
• Wi-Fi Multimedia support

Interoperable with the following DSLAMs:

• Cisco 6130 and Cisco 6260 IP DSL switches
• Alcatel (ASAM 1000 and 7300)
• Lucent Stinger (24- and 72-port line cards)
• ECI HiFocus (16- and 32-port line cards)

Wireless LAN Hardware:

• Automatic rate selection for 11a/11b/11g
• Field-replaceable antennae
• External antenna
• Antenna diversity
• Wi-Fi Certified for WPA-Personal and WPA-Enterprise
• Default antenna gain: 2.2 dBi

Data Rates Supported:

• 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
• 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps

Wireless LAN Software Features:

• Maximize throughput or maximize range option
• Software-configurable transmit power
• Support for Wi-Fi Multimedia (WMM)
• Quality of Service (QoS) for WLANs

Noise Level:

• Less than 80°F (27°C): 34 dBA
• Greater than 80°F (27°C) through less than 104°F (40°C): 36 dBA
• Greater than 104°F (40°C): 42 dBA

QoS Protocols:

• Weighted Fair Queuing (WFQ)
• Class-Based WFQ (CBWFQ)
• Weighted Random Early Detection (WRED)
• Committed Access Rate (CAR)
• Resource Reservation Protocol (RSVP)
• Network-Based Application Recognition (NBAR)
• Differentiated Services (DIFFSERV)
• Link fragmentation and interleaving (LFI)
• Low-Latency Queuing (LLQ)

Certifications & Standards:

IEEE:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.1Q
• IEEE 802.1x
• IEEE 802.3af
• IEEE 802.11 a/b/g

Safety:

• UL 60950
• CAN/CSA C22.2 No. 60950
• IEC 60950-1
• EN 60950-1
• AS/NZS 60950

EMC Immunity:

• EN300386
• EN55024(CISPR24)
• EN61000-4-2
• EN61000-4-3
• EN41000-4-4
• EN41000-4-5
• EN41000-4-6
• EN41000-4-8
• EN41000-4-11
• EN50082-1
• EN61000-6-2
• ITU-T K.21

EMC Emissions:

• CFR 47 Part 15, Class A
• ICES-003 Class A
• EN55022 Class A
• CISPR22 Class A
• AS/NZS 3548 Class A
• VCCI Class A
• EN 300386
• EN61000-3-2
• EN61000-3-3
