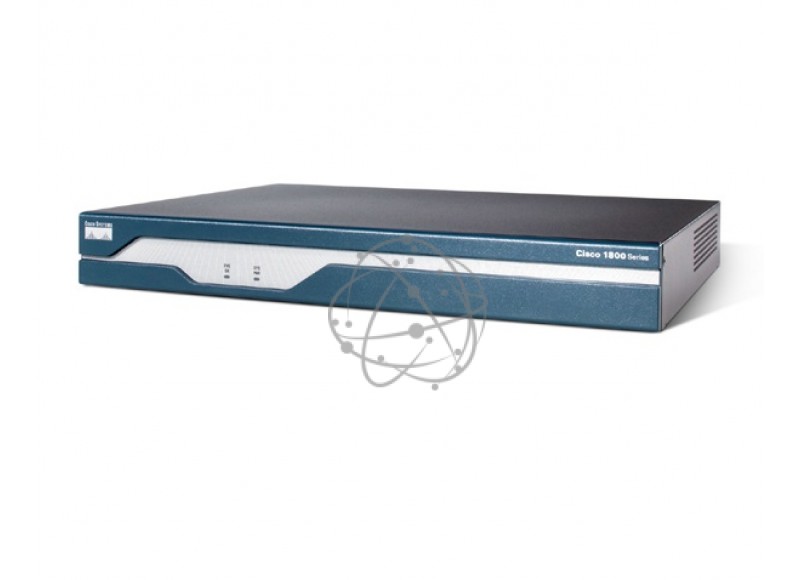

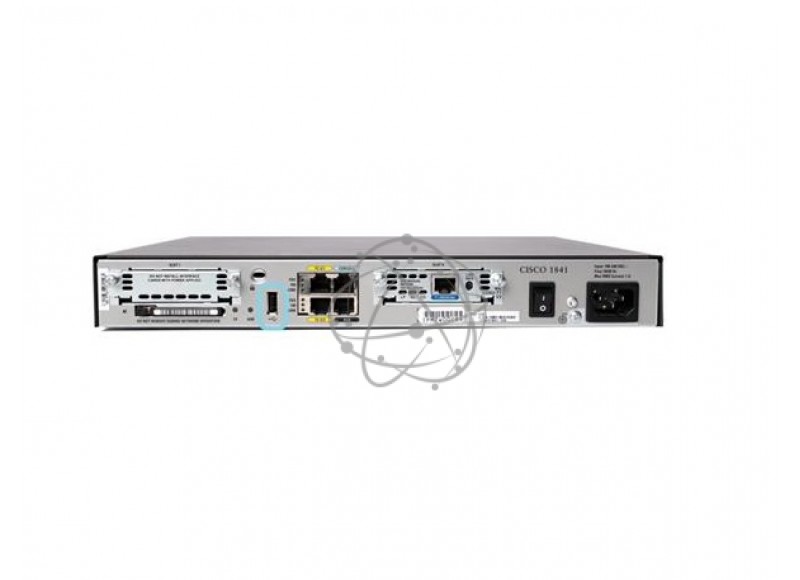

Маршрутизатор Cisco 1841-SEC/K9

Manufacturer:

Cisco

Product ID:

CISCO1841-SEC/K9

Product Description:

1841 Security Bundle, Adv.Security, 64FL/256DR

Product Type:

Router

Interfaces/Ports

Total Number of Ports:

2

USB:

Yes

Management Port:

Yes

Number of Network (RJ-45) Ports:

2

I/O Expansions

Number of Total Expansion Slots:

3

Expansion Slot Type:

AIM

Network & Communication

Network Technology:

10/100Base-TX

Ethernet Technology:

Fast Ethernet

Management & Protocols

Security Features:

• Secure Shell (SSH)
• Easy VPN Client and Server
• Dynamic Multipoint VPN (DMVPN)

Encryption support in software and hardware:

• DES, 3DES, AES 128, AES 192, AES 256
• Threat Defense:
• Cisco IOS Firewall
• Transparent Firewall
• Intrusion Prevention
• URL Filtering

Trust and Identity:

• Network Admission Control (NAC)
• Authentication, Authorization, and Accounting (AAA)
• 802.1x Support

Memory

Standard Memory:

256 MB

Maximum Memory:

384 MB

Memory Technology:

DRAM

Flash Memory:

64 MB

Power Description

Input Voltage:

110 V AC

220 V AC

Power Source:

Power Supply

Physical Characteristics

Form Factor:

Desktop

Wall Mountable

Height:

1.7"

Width:

13.5"

Depth:

10.8"

Weight (Approximate):

6 lb

Miscellaneous

Package Contents:

• 1841 Router
• Cisco 1841 IOS ADVANCED SECURITY
• Device manager for routers (ROUTER-SDM)
• 64MB Cisco 1800 Compact Flash Memory (MEM1800-64CF)
• 128 to 256MB SODIMM DRAM factory upgrade for the Cisco 1841 (MEM1841-128U256D)
• Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
• One blue RJ-45-to-DB-9 console cable
• One DB-9-to-DB-25 modem adapter
• Power Cord
• Cisco product registration card
• Regulatory Compliance and Safety Information for Cisco 1840 Routers document
• Cisco Router and Security Device Manager (SDM) Quick Start Guide document
• Cisco 1800 Series Integrated Services Routers (Modular) Quick Start Guide

Additional Information:

Interface Card Slots:

• Both slots on the Cisco 1841 router are HWIC slots and provide compatibility with WICs and multiflex trunk (VWICs) interface cards (for data only)

VoIP support:

• Voice-over-IP (VoIP) pass-through only

Operating altitude:

• 10,000 feet (3000 meters) @ 77°F (25°C)

Noise level:

• Normal operating temperature:
• >78°F/25.6°C through
• >104°F/40°C: 42 dBA

Certifications & Standards:

• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-TX
• IEEE 802.1x: Authentication
• USB 1.1

Safety:

• UL60950-1
• CAN/CSA 60950-1
• AS 3260
• EN60950-1

EMI:

• EN 55022, 1998, class A
• CISPR22, 1997, class A
• CFR47, Part 15, Subpart B, 1995, class A
• EN61000-3-2 Harmonic Current Emission (only for equipment >75W but <16A)
• EN61000-3-3 Voltage Fluctuation and Flicker (only for equipment £16A)

Immunity:

• CISPR24, 1997 ITE-Immunity characteristics, Limits and methods of measurement
• EN 55024,1998 ITE-Immunity characteristics, Limits and methods of measurement
• EN50082-1, 1997 Electromagnetic compatibility-Generic immunity standard, Part 1
• EN 300 386, 1997 Telecommunications network equipment EMC requirements
• The requirements are covered by the following standards:
• IEC 61000-4-2:1995 Immunity to Electrostatic Discharges
• IEC 61000-4-3:1995 Immunity to Radio Frequency Electromagnetic Fields
• IEC 61000-4-4:1995 Immunity to Electrical Fast Transients
• IEC 61000-4-5:1995 Immunity to Power Line Transients (Surges)
• IEC 61000-4-6:1996 Immunity to Radio Frequency Induced Conducted Disturbances
• IEC 61000-4-11:1995 Immunity to Voltage Dips, Voltage Variations, and Short Voltage Interruptions

Network homologation:

• USA-TIA-968-A, T1.TRQ.6-2001
• Canada-CS-03
• European Union-RTTE Directive 5/99
• Argentina-CTR 21
• Australia-AS/ACIF S002, S003, S016 , S031, 3043
• Brazil-225-540-788, CTR3, 225-100-717 Edition 3, NET 001/92 1990
• China-ITU-G.992.1, ITU-G.992.1, ITU-G.991.2, CTR3, ITU I.431 1993
• Hong Kong-HKTA 2033, HKTA 2033, HKTA 2014, HKTA 2017 Issue 3 2003, HKTA 2011 Issue 1, HKTA 2011 Issue 2, HKTA 2013 Issue 1
• India-I_DCA_18_02_Jun_99-199, S/ISN-01/02 Issue 1999 S/ISN-02 1 1998, IR/PRI-01/02 Issue 1 1998, S/INT-2W/02 MAY 2001, S/INT-2W/02 MAY 2001
• Israel-U.S. approval accepted
• Japan-Technical condition (DoC acceptance in process)
• Korea-U.S. approval accepted
• Mexico-U.S. approval accepted
• New Zealand-PTC 270/272, CTR 3, ACA 016 Revision 4 1997, PTC 200
• Singapore-IDA TS ADSL1 Issue 1, IDA TS ADSL 2, IDA TS HDSL, IDA TS ISDN 1 Issue 1 1999, IDA TS ISDN 3 Issue 1 1999, IDA TS PSTN 1 Issue 4 , IDA TS PSTN 1 Issue 4, IDA TS PSTN 1 Issue 4
• South Africa-U.S. approval accepted
• Taiwan-U.S. approval accepted
